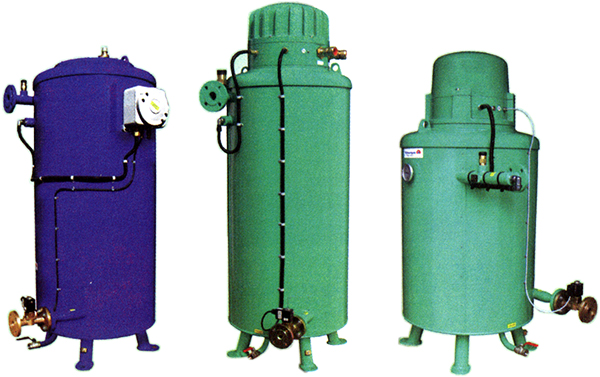

Indirect electrically heated water bath vaporizers:

+ Classification : Zone 1

    - Approved according to the highest safety standards allowing it to be placed in Zone 1 (Hazardous Area). Safety distance is not required.

    - Model range : 10 – 25 – 50 – 100 kg/h

    - Model range : 150 – 200 – 400 kg/h

    - Operating temperature range : 40°C - 70°C

This range of safe and reliable LPG vaporizers makes it possible to cover any requirements in restaurants, small industrial enterprises and greenhouses where natural

+ Classification : Zone 2

    - A minimum distance in accordance with local regulations should be allocated between the tank installation and the vaporizer.

    - Model range : 50 – 100 – 150 “Compact” kg/h

    - Model range : 150 – 200 – 400 kg/h

    - Operating temperature range : 40°C - 70°C

This range of safe and reliable LPG vaporizers makes it possible to cover any requirements in restaurants, small industrial enterprises and greenhouses where natural vaporization of LPG is not sufficient to cover the demand.

Re-circulated hot-water heated vaporizers:

+ Classification : Zone 1

    - Range : 200 kg/h – subject to conditions in table overleaf.

    - Range : 700 kg/h – subject to conditions in table overleaf.

    - Range : 1200 kg/h – subject to conditions in table overleaf

    - Operating temperature range : 40°C - 70°C

This safe and reliable hot-water heated LPG vaporizer makes it possible to cover the demands in a medium-sized industrial enterprise where a surplus of hot water or lack of electrical power exists.

When installation of the unit is possible and surplus of hot water is available, low installation and running costs will result – refer Operational Conditions Table overleaf.

This unit has been approved according to the highest safety standards allowing it to be placed in Zone 1 (Hazardous Area).Safety distance is not required.

+ Classification : Zone 2

    - Range : 200 kg/h – subject to conditions in table overleaf.

    - Range : 700 kg/h – subject to conditions in table overleaf.

    - Range : 1200 kg/h – subject to conditions in table overleaf

    - Operating temperature range : 40°C - 70°C

This safe and reliable hot-water heated LPG vaporizer makes it possible to cover the demands in a medium-sized industrial enterprise where a surplus of hot water or lack of electrical power exists.

When installation of the unit is possible and surplus of hot water is available, low installation and running costs will result – refer Operational Conditions Table overleaf.

This unit is meant for Zone 2. A minimum distance in accordance with local regulations should be allocated between the tank installation and the vaporizer.

Electrically heated dry vaporizers:

+ Classification: 24, 32 and 50kg/h (Zone 1 and Zone 2)

- Electric vaporizers safely and efficiently vaporize LPG for commercial and industrial applications serving up to 50 kg/h.

- Eight (8) removable resistance heating elements inserted from the top extend through the vaporizer providing thermal energy to the aluminum heat exchanger placed inside an iron pressure vessel.

- The control housing containing electric components and mechanical thermostats is placed on the side allowing easy accessible maintenance.

- The control housing is equipped with a green on/off indicator light.

- The standard Remote Control Panel can be placed next to the vaporizer or in a designated control room depending on the classification of the room.

- When the vaporizer reaches operating temperature, the inlet solenoid valve will open to allow gas flow.

- The inlet solenoid valve is controlled by a mechanical thermostat located in the vapor outlet.

- The vaporizer is equipped with a mechanical excess temperature protection thermostat to ensure that the vaporizer is not overloaded.

- Other mechanical thermostats monitor the temperature of the LPG and the aluminum heat exchanger, and regulate the on/off cycle of the heating elements at predetermined set points.
